Isobaric Filling Machine For Carbonated Drink

Application        Carbonated drinks,soft drinks,gas water,sparkling water,soda water,energy drinks,kvass


Type                     Glass Bottle,PET Bottle,Can


Filling system    Isobaric


Filling speed      1000-36,000BPH (500ml)(Customized)


Description

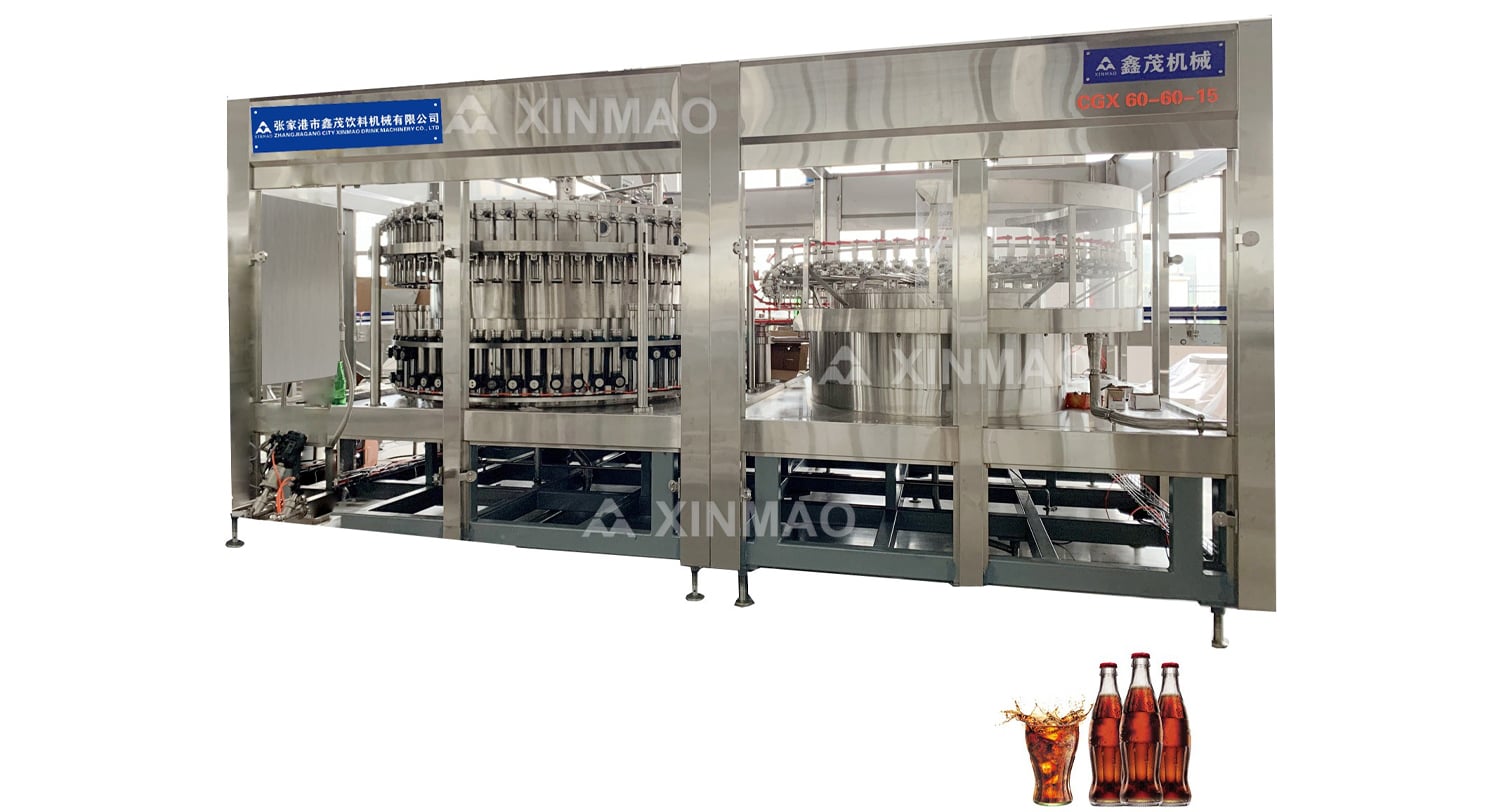

XINMAO DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.






PREPARATION SYSTEM(WATER TREATMENT SYSTEM+BLENDING SYSTEM)

1.Water Treatment System

Applicable water source: Well water, underground water, tap water, river water, spring water, mountain water, etc.

Treated water kind: Pure water, still water, mineral water, alkaline water, etc.

Core filtration equipment: Reverse Osmosis or hollow ultrafiltration.

Electricity control system: Germany Siemens PLC

Treated the raw water into drinkable water.(Customized according to customer water quality)

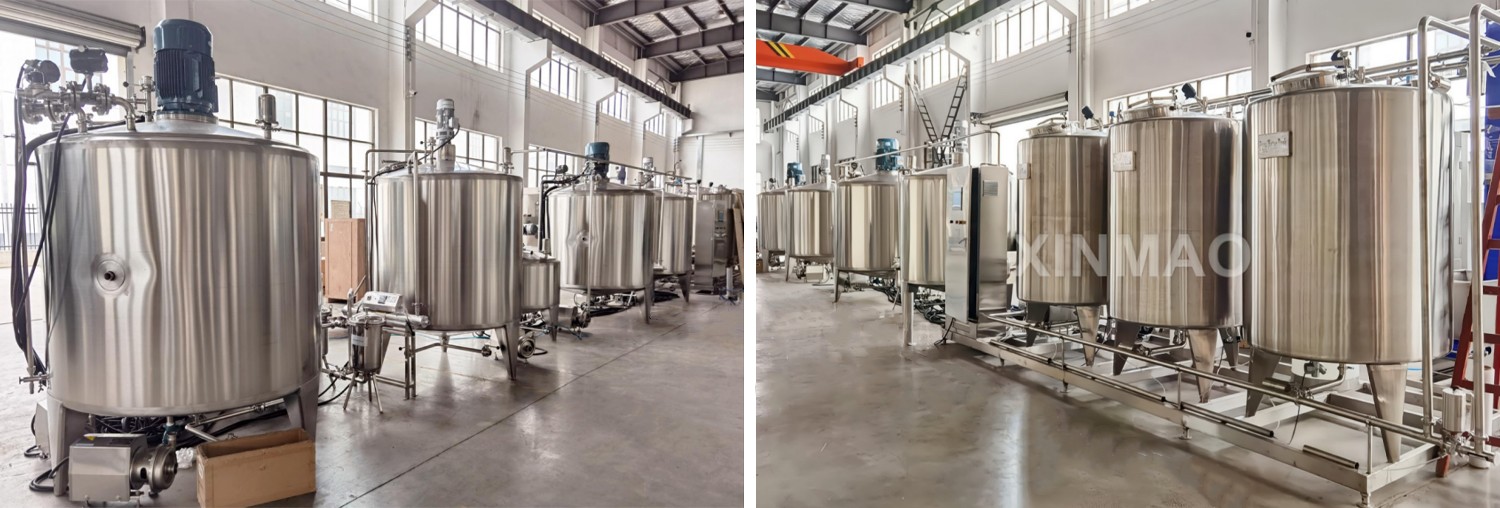

2.Blending System

Beverage mixing is an art. By combining different ingredients and adjusting the proportions, a rich variety of drinks can be created.

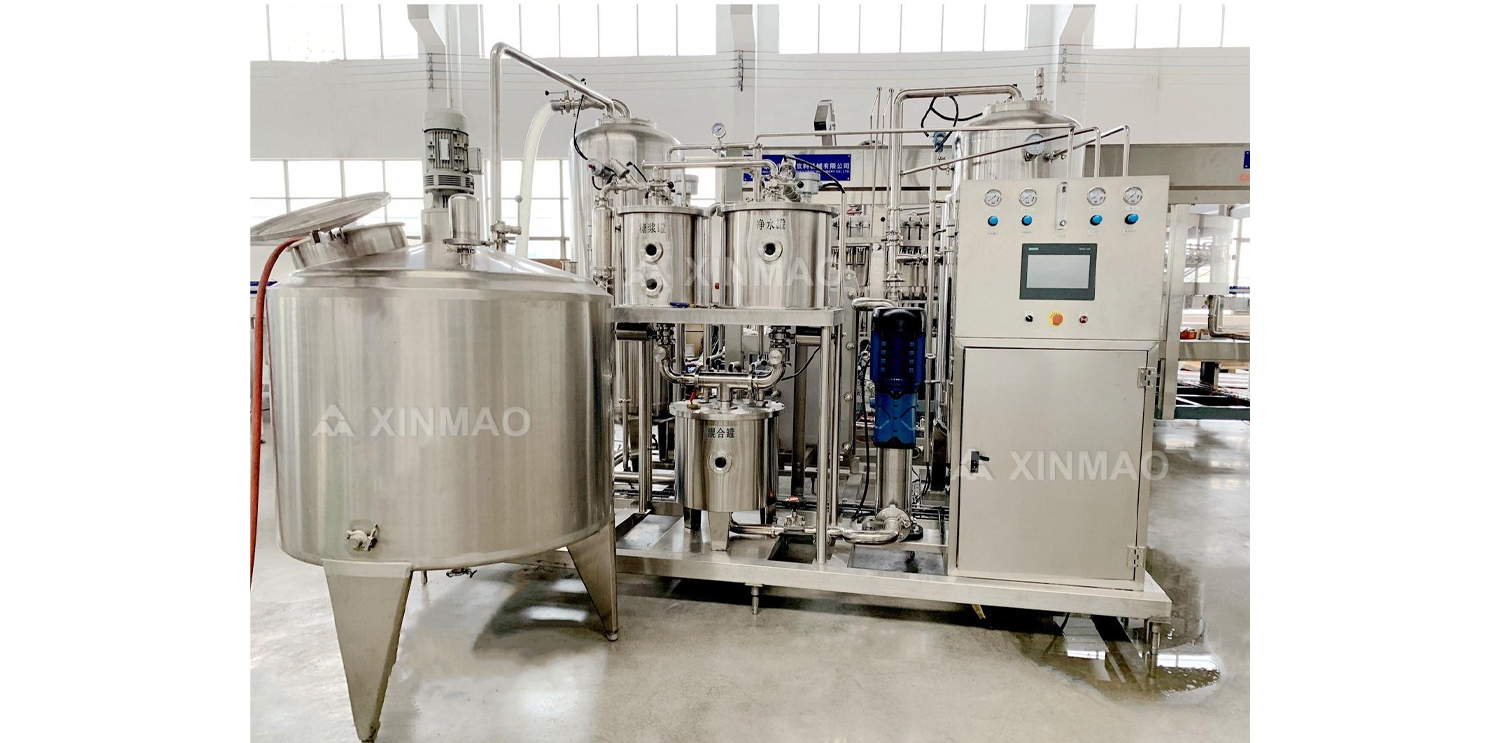

3.Drinks Mixer

Automatic Carbonated beverage mixing system with reasonable & high efficiency structure , high mix precision , CO2 mixing fully, two stage of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing and carbonation, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.

This beverage mixer for the production of all kinds of carbonated beverage, (water, syrup, carbon dioxide) of carbonated proportions, such as lemon, cola, fruit juice and other soft drinks, beverage production line equipment is the main equipment. (Inparticular, the high-grade key beverage production equipment)

1 The machine with a chemical industry advanced technology - static mixer (ie carbonizer), its gas-liquid mass transfer area is large, small pressure loss, high efficiency, low energy consumption, simple structure, reliable performance and the use of noise small multi-stage centrifugal pumps, so that the whole performance is guaranteed;

2 Mixing ratio accurate, easy to adjust, the machine does not require replacement parts, you can easily yield and the ratio of syrup and water was adjusted;

3 Reflow machine uses carbon dioxide oxygen, carbon dioxide gas can save, but also to achieve the purpose of deoxy make deoxygenated water has a good pre-carbonization effect;

4 The machine easily adjust the air content, according to the requirements of beverage containing gas through proper operation and adjustment is completed;

5 The machine set up perfect automatic control system with motor coordination, simple structure, continuous production, automation features.






4.Filling System

XINMAO DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.




Parameters

Model Output/Capacity
DCGF8-8-3 1000-2000 BPH
DCGF14-12-5 2000-3000 BPH
DCGF18-18-6 3000-4000 BPH
DCGF24-24-8 5000-6000 BPH
DCGF32-32-10 8000-10000 BPH
DCGF40-40-12 10000-12000 BPH
DCGF50-50-12 12000-15000 BPH
DCGF60-60-15 15000-18000 BPH
DCGF72-72-18 18000-24000 BPH
DCGF80-80-24 21000-30000 BPH

Features

  • 1. Compact structured, good-looking, easy to operate and highly automated.

  • 2. Air conveyor is directly linked with infeed starwheels, making it easier to change bottles without screws and conveyor chains.

  • 3. Bottles are conveyed with neck blocked. Bottles can be changed through some replacement of guiding sheets, starwheels of nylon instead of height adjustment of machine.

  • 4. Rinser-clamp of special design is strong and endurable, without contact with worms at bottle-mouth, to prevent bi-pollution.

  • 5. Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.

  • 6. Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.

  • 7. Feed-in volume is controlled to ensure accurate filling.

  • 8. Valve on-off system is driven by pneumatic cylinder, which starts on bottle signals.

  • 9. High-speed and highly accurate filling valves ensure no loss of liquid at high speed.

  • 10. Bottles are kept with necks blocking when going up and down by elevator-cylinder, which apply to thin bottles with equal force instead of spring problem.

  • 11. Equipped with CIP clean-in-place.

  • 12. Bottle support-sheet in infeed starwheels goes down via screw. Bottles can be changed without adjustment of height of conveyor chain.

  • 13. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.

  • 14. Highly effective cap sorting and feed in system is protective for feed in and cap absence.

  • 15. Equipped with overload system to safeguard machine and operators.

Structure


XINMAO Machine Working Procedure
1.Prepare for pressure
The inflation valve opens, forming a passage between the bottle and the return air channel. CO2 is filled into the bottle through this passage until the CO2 pressure in the bottle is equal to the pressure in the tank.
2.Filling
The filling valve opens, forming a passage between the bottle and the tank, through which liquid is filled in the bottle. At the same time, the CO2 in the bottle flows back to the tank through the return pipe at the same speed, until the liquid in the bottle rises and flows through the return pipe to form pressure balance, the compressed CO2 in the bottle seals the liquid to continue to flow out. When the liquid enters the bottle, it is evenly distributed to the bottle wall through the diversion umbrella to avoid foaming due to impact during filling.
3.Close valve
After the filled bottles have stood for a certain period of time, the liquid valve and the inflatable valve are closed to cut off the passage between the tank and the bottle.
4.Discharge
The exhaust valve opens, creating a passage between the tank and the atmosphere, the pressure in the bottle is thereby released. The final pressure release process is carried out until the bottle is separated from the filling valve.
5.Blowing residual liquid
When the filling valve is located between the bottle outlet and bottle inlet star wheels, the inflatable valve stem opens and then closes after the preset time. In this way, the CO2 gas in the tank will blow out the remaining liquid in the return pipe.

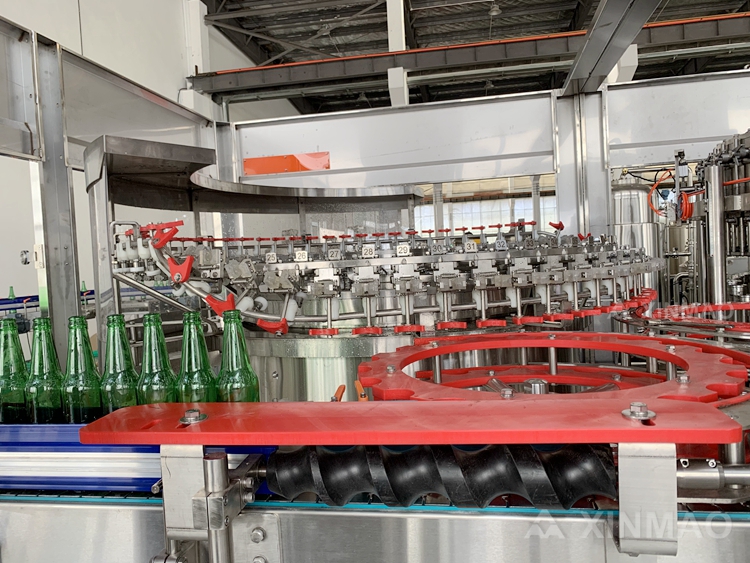

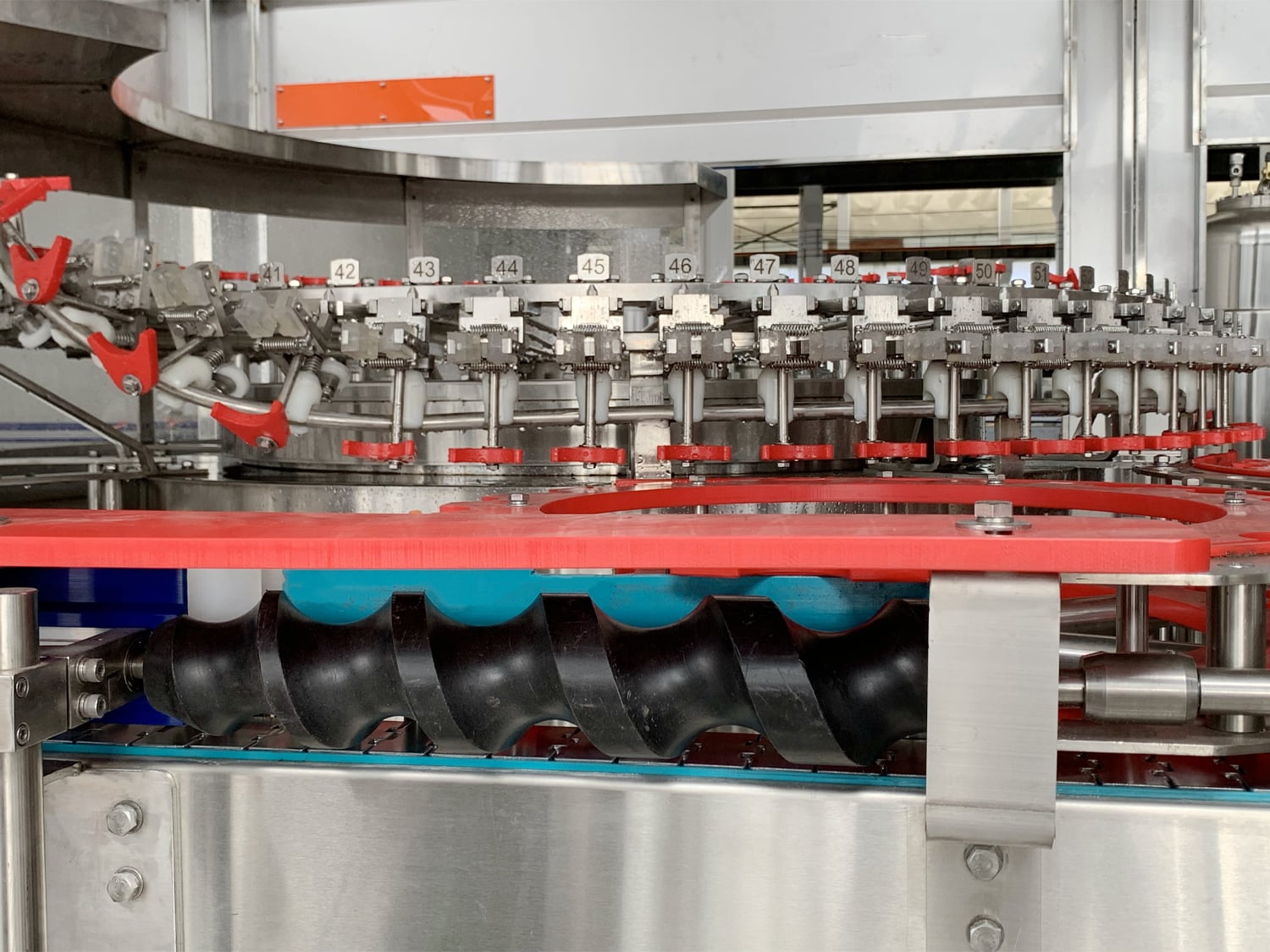

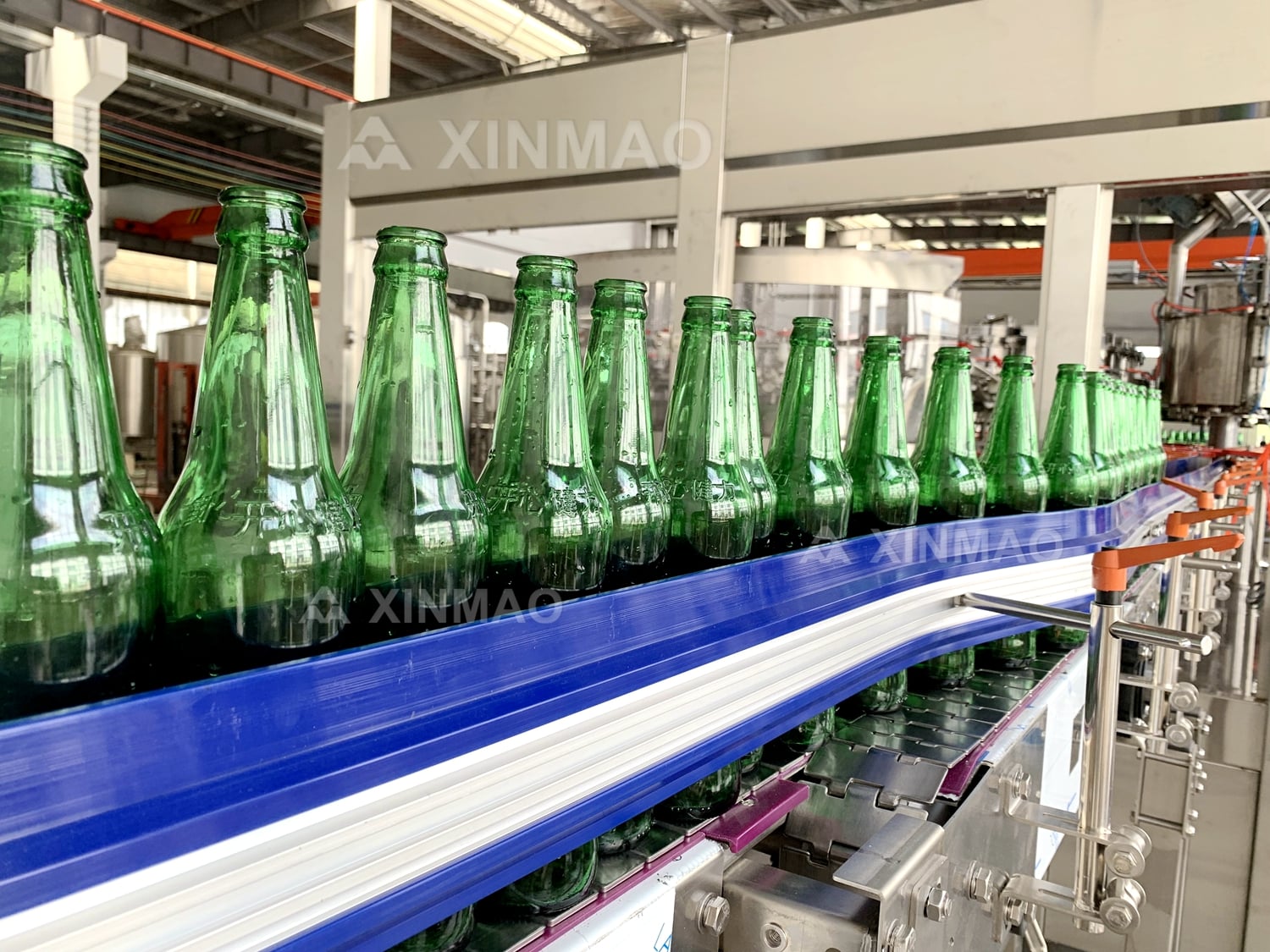

1,Bottle infeed.jpg

Bottle infeed

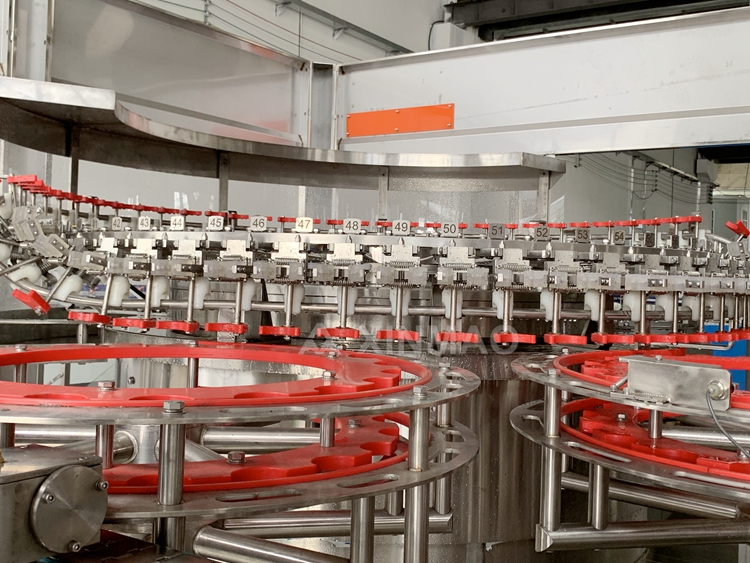

Rinser

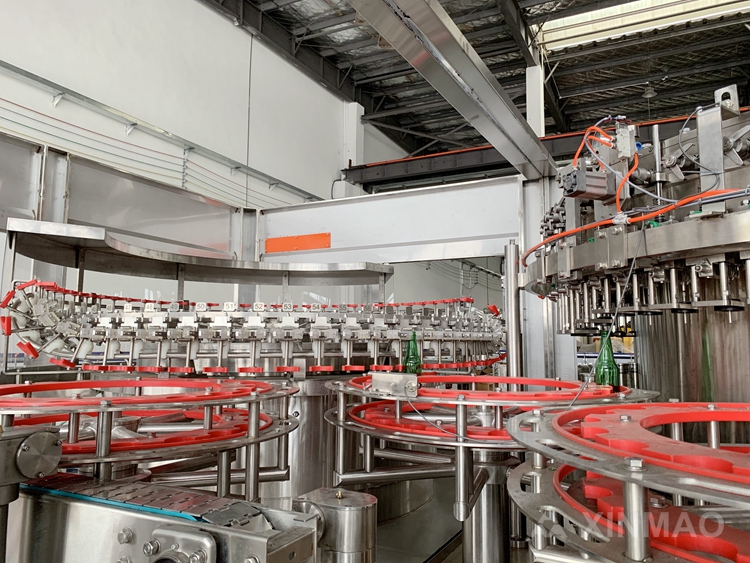

3,Transfer Starwheel.jpg

Transfer starwheel

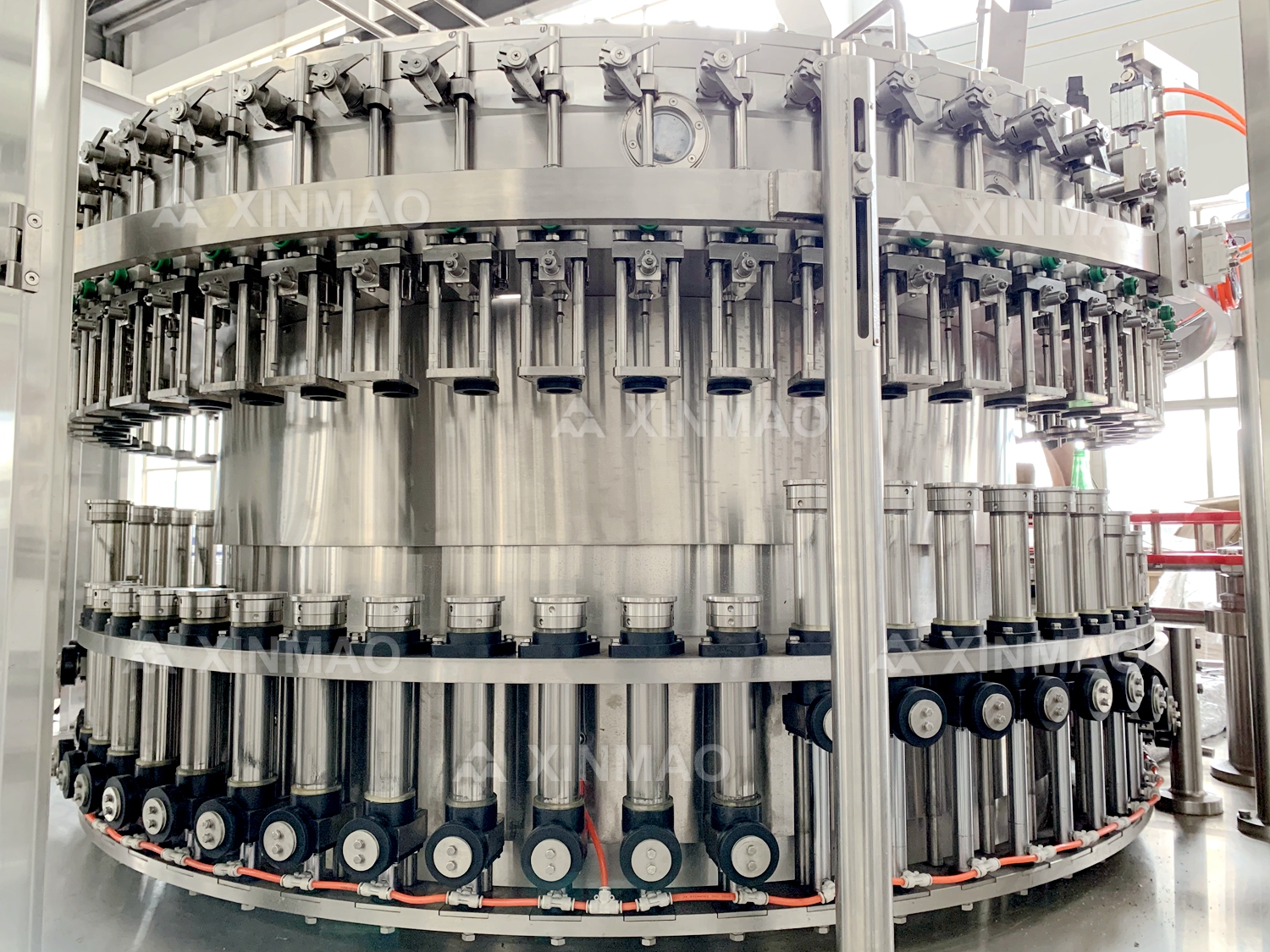

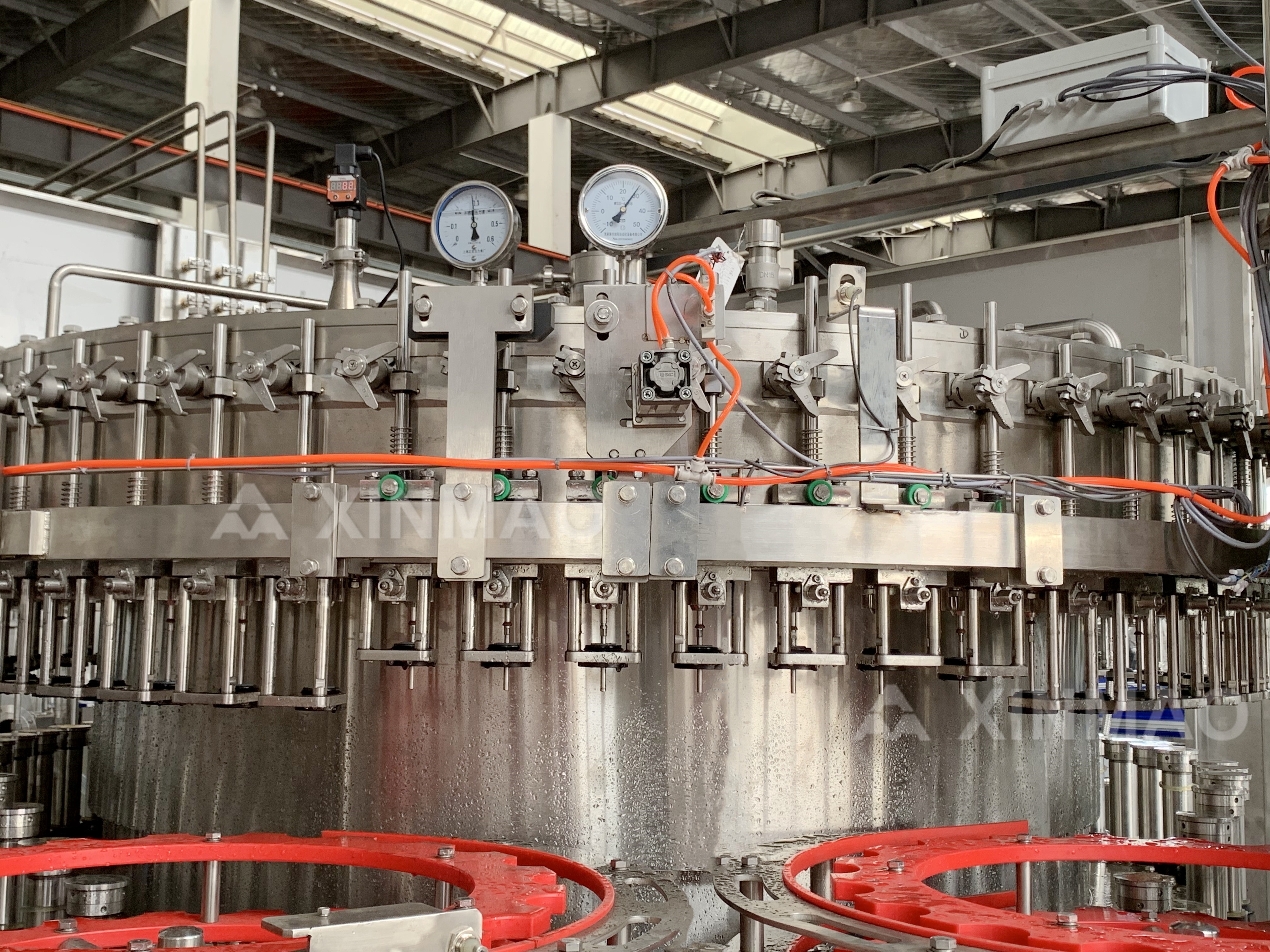

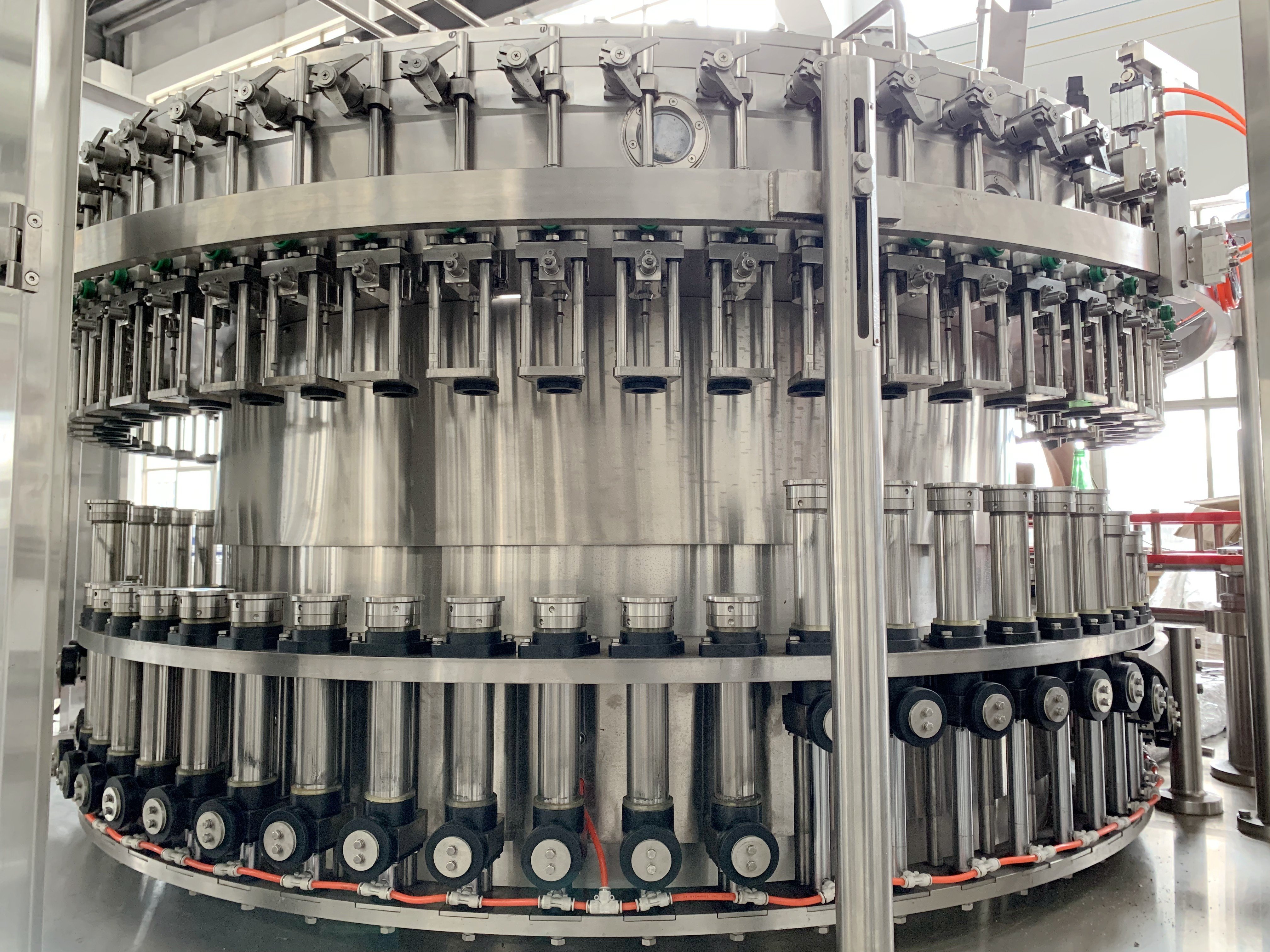

Filler


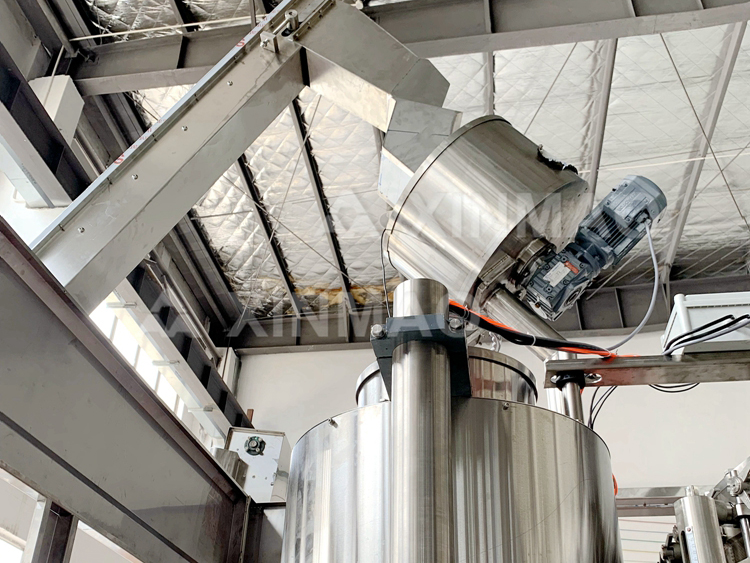

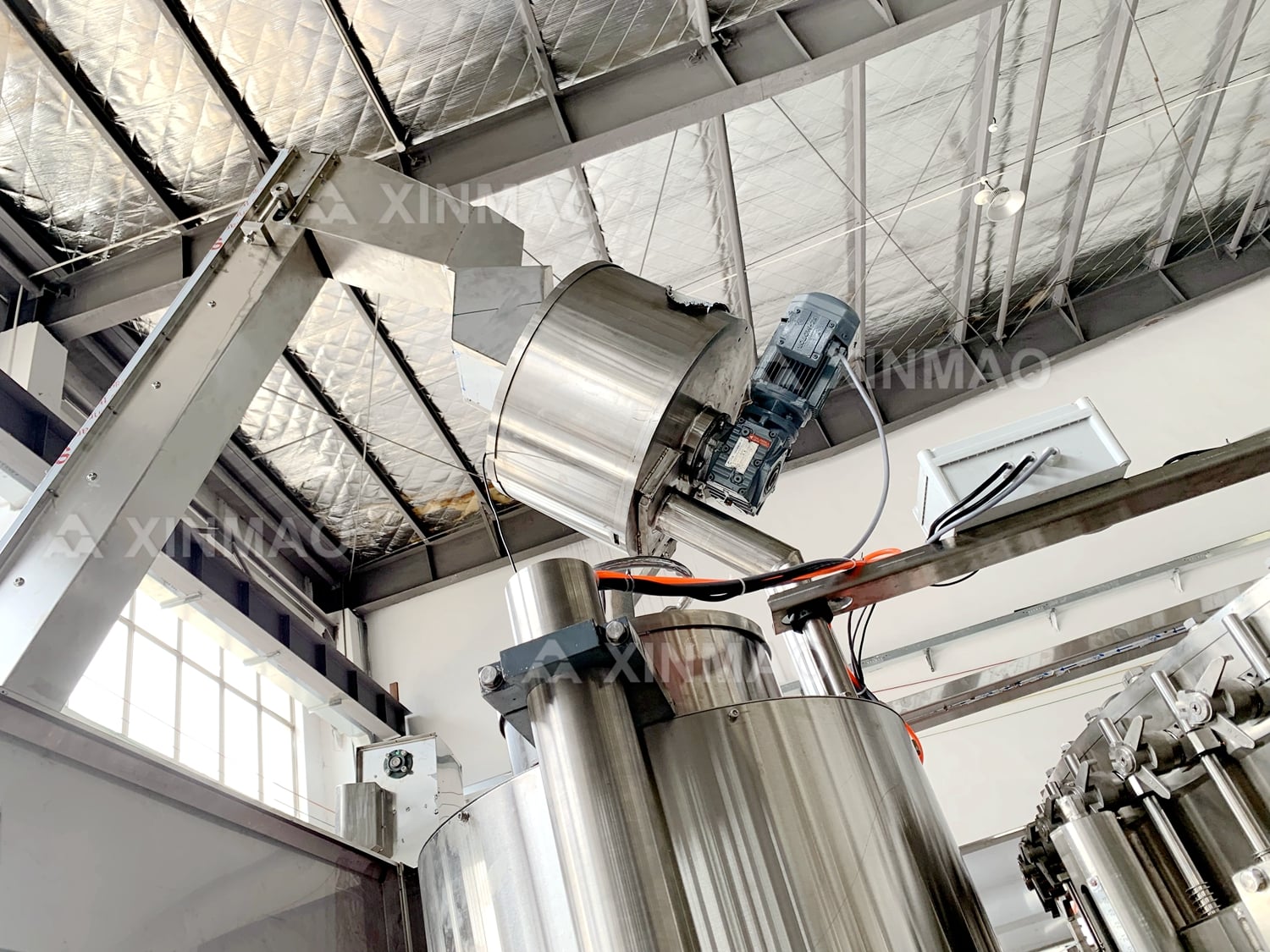

Capper

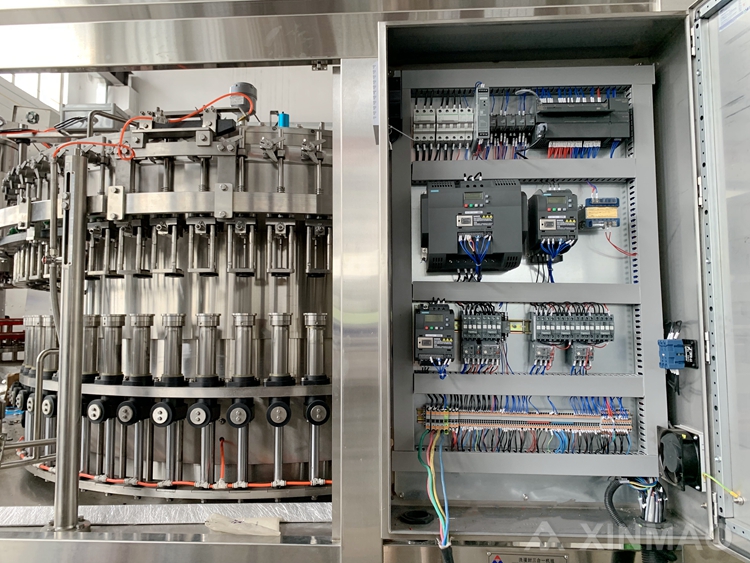

6,Electric Control Cabinet.jpg

Electric Control Cabinet

Electrical Control System

Main Configuration
Touch screen Siemens
PLC
Frequency inverter
Material of flling valve Stainless steel 304/316
Pneumatic components Festo
Photocell switch Sick
Proximity switch Sick
Motor SEW

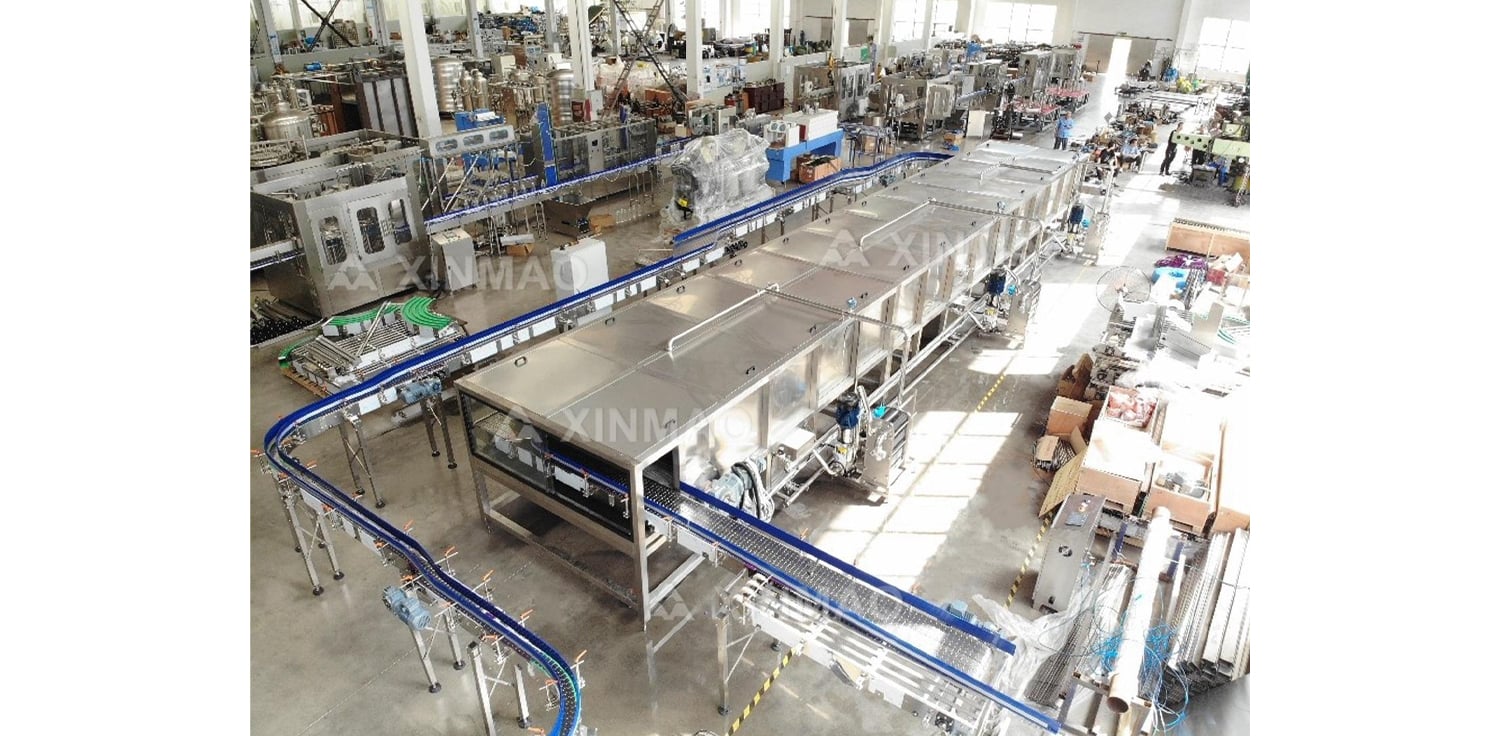

5.Bottle Warming Machine

Automatic Carbonated beverage mixing system with reasonable & high efficiency structure , high mix precision , CO2 mixing fully, two stage of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing and carbonation, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.

This beverage mixer for the production of all kinds of carbonated beverage, (water, syrup, carbon dioxide) of carbonated proportions, such as lemon, cola, fruit juice and other soft drinks, beverage production line equipment is the main equipment. (Inparticular, the high-grade key beverage production equipment)

1 The machine with a chemical industry advanced technology - static mixer (ie carbonizer), its gas-liquid mass transfer area is large, small pressure loss, high efficiency, low energy consumption, simple structure, reliable performance and the use of noise small multi-stage centrifugal pumps, so that the whole performance is guaranteed;

2 Mixing ratio accurate, easy to adjust, the machine does not require replacement parts, you can easily yield and the ratio of syrup and water was adjusted;

3 Reflow machine uses carbon dioxide oxygen, carbon dioxide gas can save, but also to achieve the purpose of deoxy make deoxygenated water has a good pre-carbonization effect;

4 The machine easily adjust the air content, according to the requirements of beverage containing gas through proper operation and adjustment is completed;

5 The machine set up perfect automatic control system with motor coordination, simple structure, continuous production, automation features.


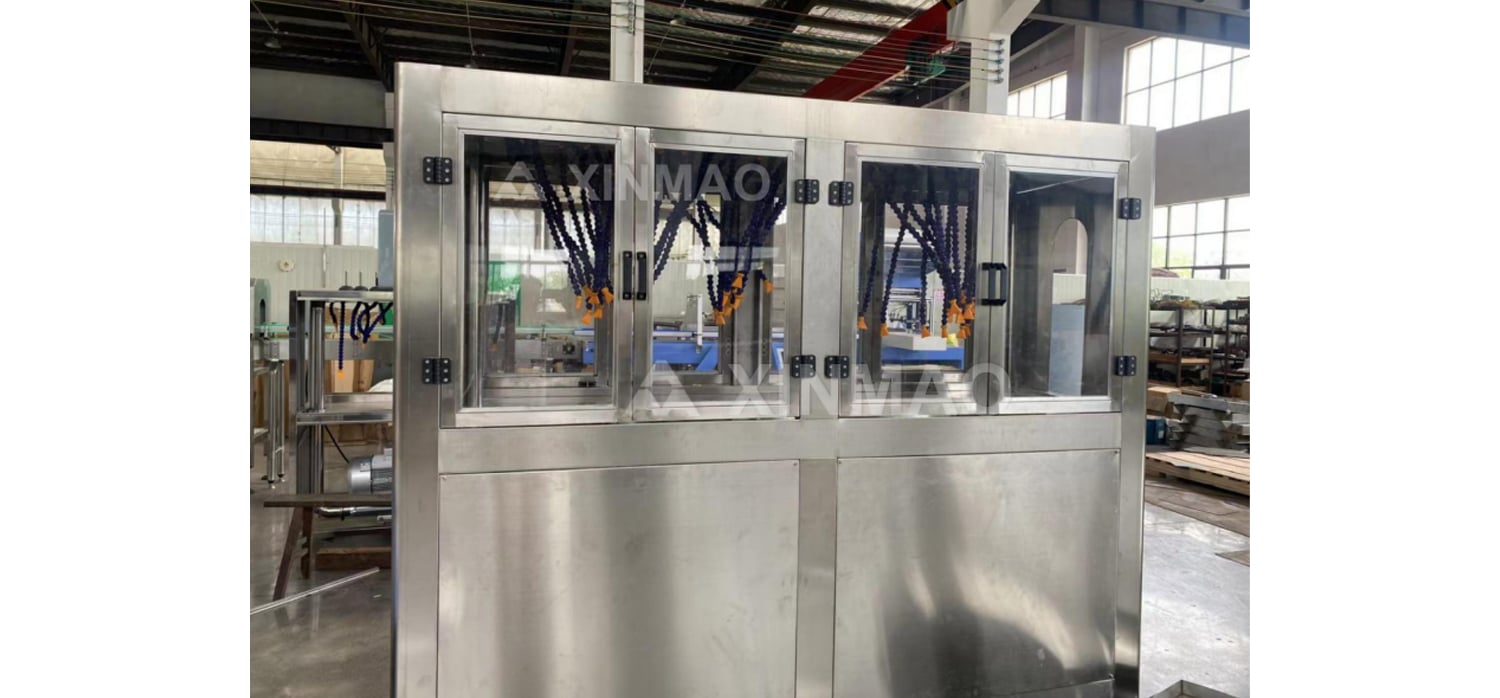

6.Bottle Blow Dryer

A high-pressure fan is used to blow air, so that high-speed air is ejected from the nozzle, so that the water droplets on the bottle body are blown away as much as possible. The nozzle position can be freely adjusted according to the bottle height.

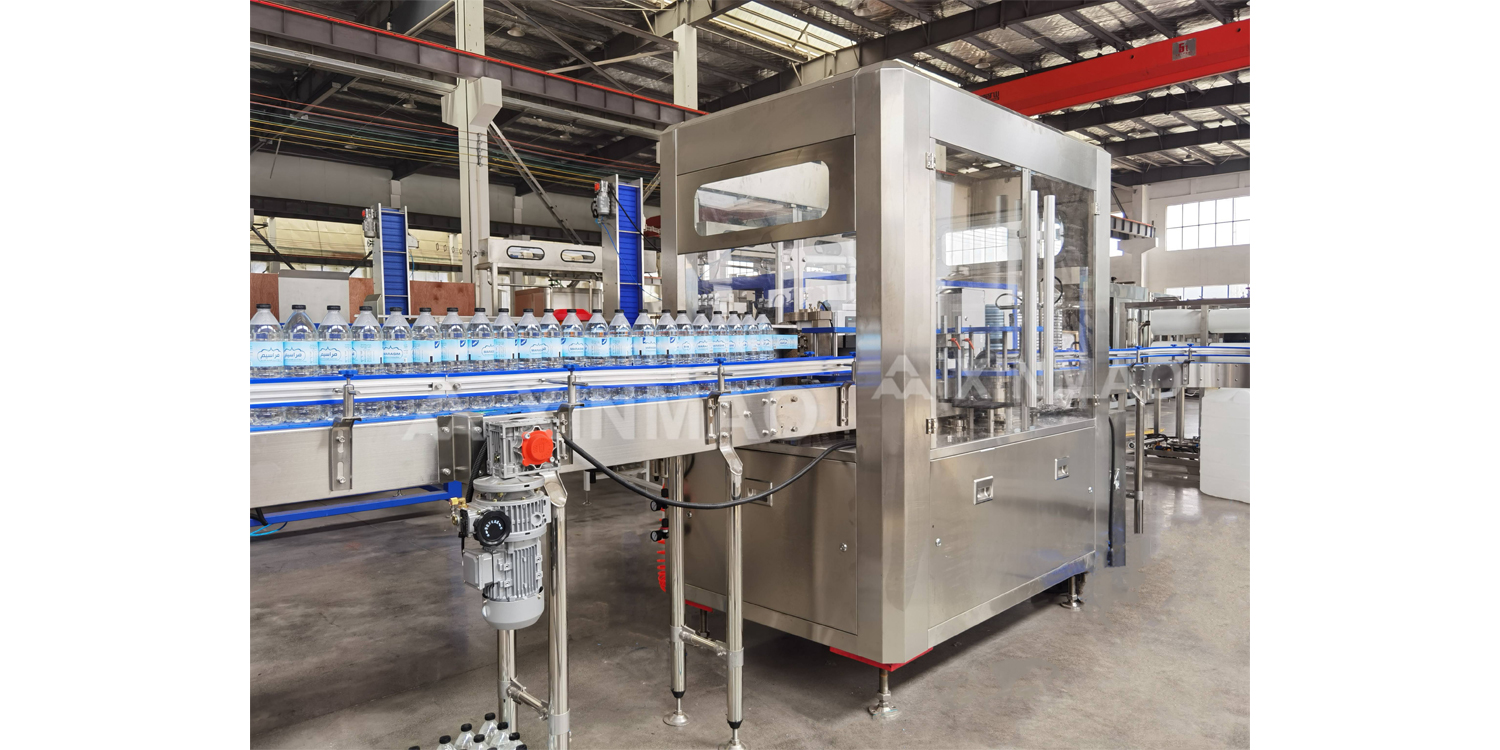

7.Full-Auto OPP Hot Melt Labeling Machine

Opp hot melt labeling machine has great advantages in labeling speed and efficiency, and the later consumables are relatively cheap. It is mostly suitable for carbonated beverage.


8.Full-Auto Packing System

Common capacity range: 8-45 pack/min
Packing Material: LDPE filmPacking method: Film wrapping and shrinking
Shrinking method: By electricity heating
Automation degree: Fully automatic
