PE/PP/PET Bottle Dairy Filling Machine

Welcome to XINMAO,your trusted partner for comprehensive dairy beverages bottling solutions.
Whether you are bottling dairy beverages in PE/PP/PET,glass,or cans,our advanced technology and expertise ensure the highest quality and efficiency in your production process.

1,Water Treatment

Water purification system can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the raw water resource. It can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh drinking water standards, even standard of healthy mineral water.

Purify Process:

Raw water>Water pump>Silica sand filter>Active carbon filter>Sodium ion exchanger>High pressure pump>Reverse osmosis>Ozone generator>Water tank>Pure water

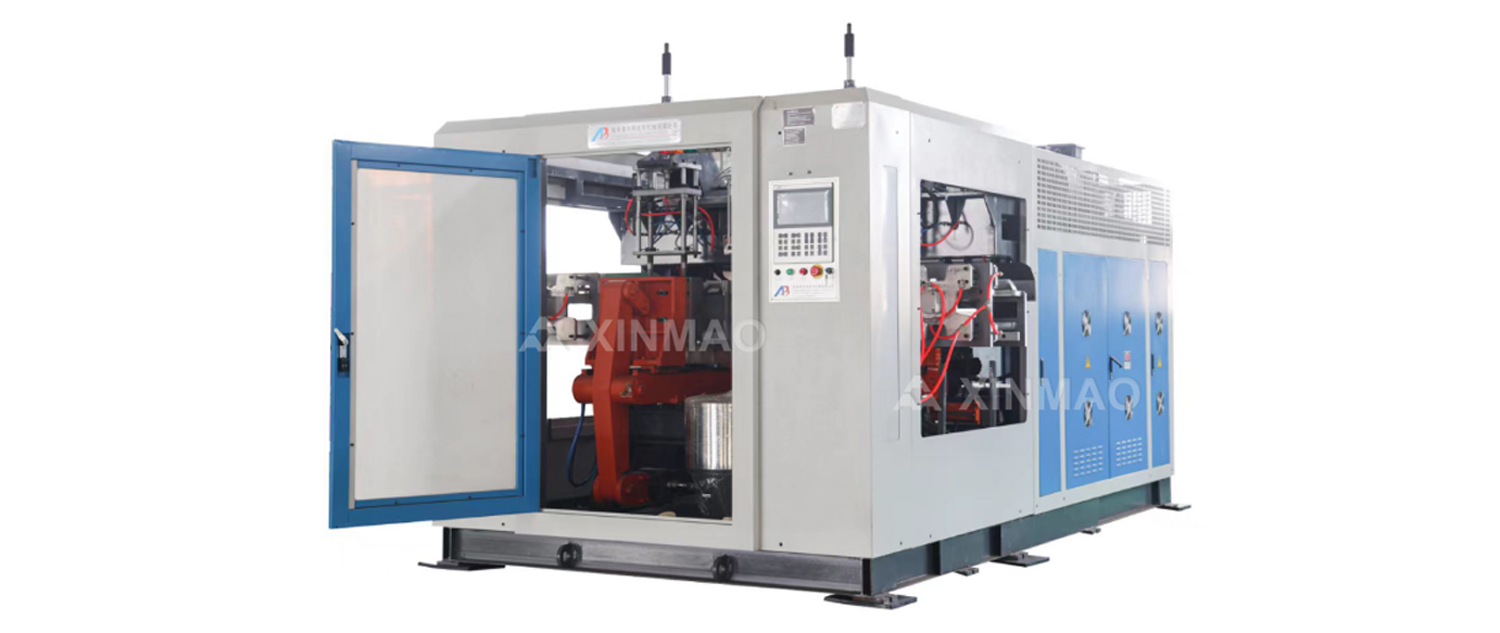

2,Auto PP Bottle Blowing Machine

Automatic PP Bottle Blowing Machine is suitable for blowing PP bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing water bottles, soda bottles, cola bottles. Bottle shapes are all customized and can be adjusted according to your requirements.

Blowing process:

1) Preform inlet controlling

2) Bottle preform heating controlling

3) Blowing technology controlling

4) Bottle check and outlet.

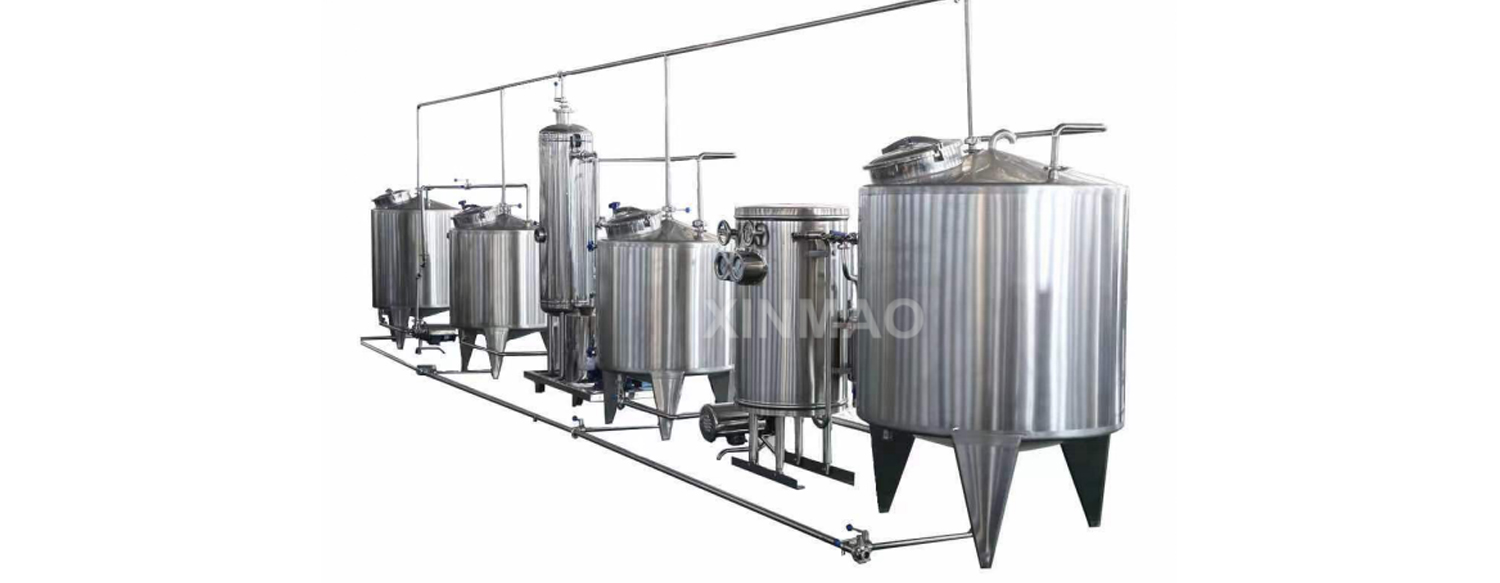

3,Blending System

Blending tanks are widely used in soft drink, juice, dairy, and other beverage industries. They are used for blending and mixing various kinds of materials, and materials are mixed evenly by stirring. It is an indispensable equipment for manufacturers of beverages, dairy products, and pharmaceuticals.

All materials like concentrate, syrup, water...will be added into this tank, and stirred evenly. This machine equips with liquid level gauge, air respirator, CIP cleaning port, sanitary manhole...etc.

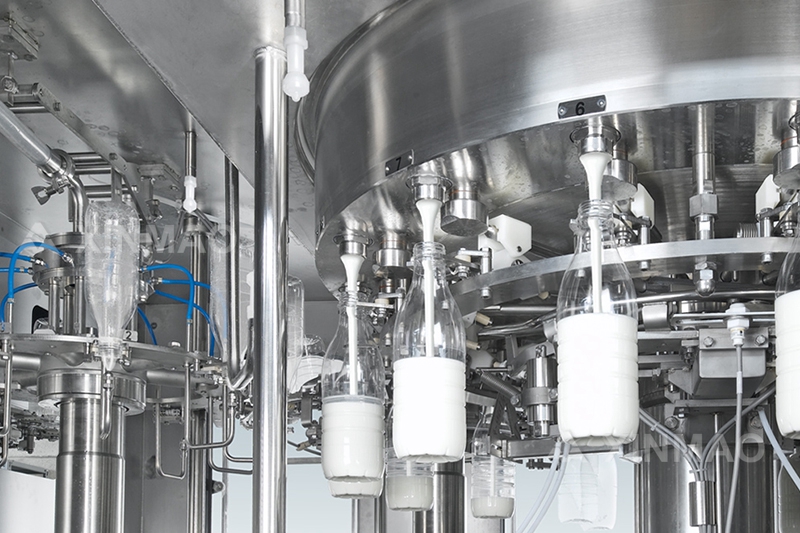

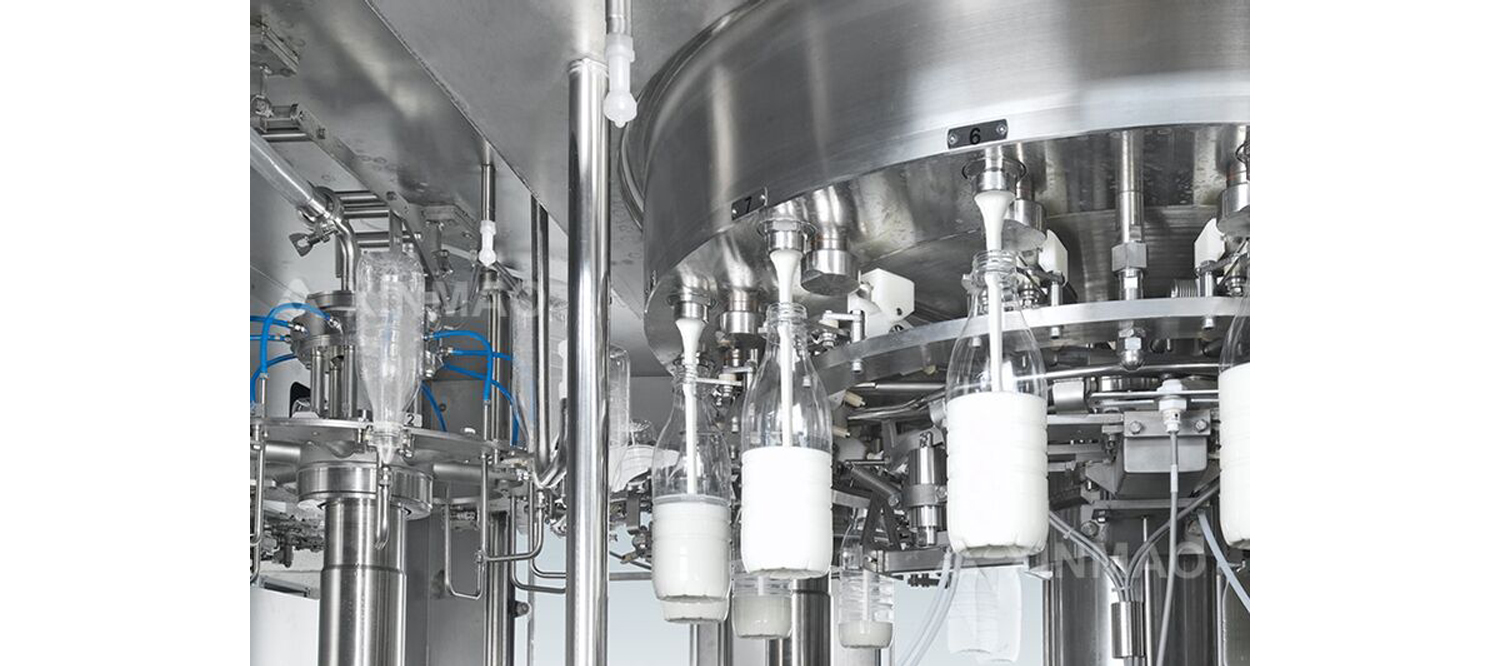

4,Bottle Filling

Advanced Filling Technology：Precision filling to maintain milk quality and nutritional value.

• PE/PP/PET BottledMilk Bottling

  Our PE/PP/PET bottling lines are designed for high-speed production and reliability.With capacities up to 36,000BPH (500ml),our systems handle various bottle sizes and shapes,ensuring flexibility and efficiency in your production process.

• Glass Bottled Milk Bottling

  Glass bottles preserve the freshness and purity of milk while providing a premium appearance.Our glass bottling lines are equipped with advanced technologies to ensure precise filling,capping,labeling and packaging.We provide solutions that enhance the shelf appeal of milk products.This will significantly increase your bottom line.

• Can Milk Bottling

  Canning is an efficient option for milk,providing convenience and long shelf life.Our canning lines are designed for high-speed production with precise filling and sealing,ensuring your dairy beverages retain their nutritional quality and fresh taste.

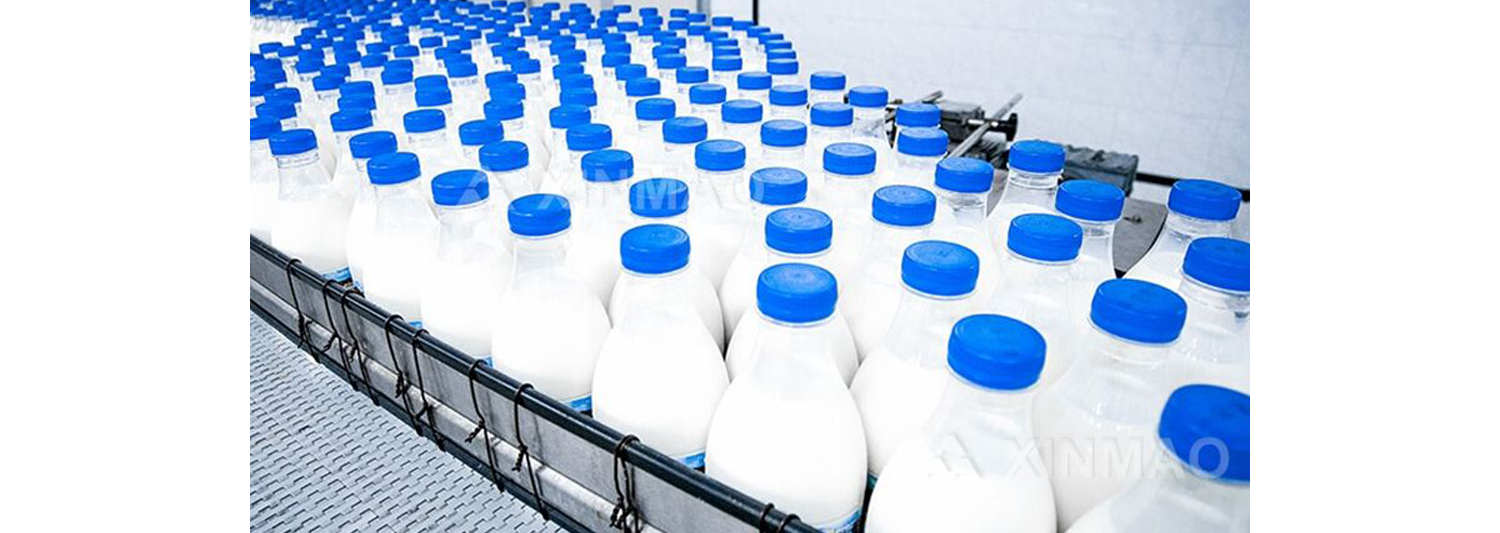

5，Conveyor System

The working efficiency of the production line is largely decided by the conveying system. When there is occasional stop on the downstream packaging system (e.g. label, film and carton change), the forepart of the production line cannot be effected. At the same time, the transferring system must connect the equipments in the forepart and rear part well, which can realize the high efficiency of the entire production line.

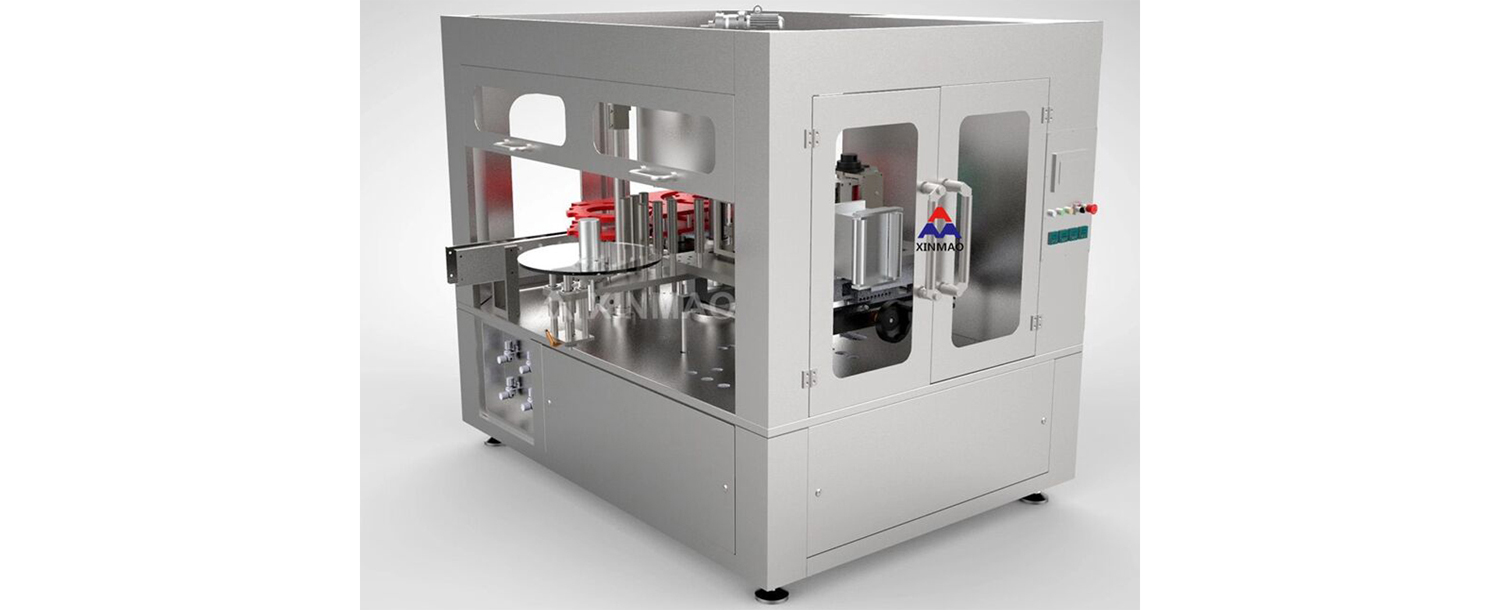

6,Labeling Machine

We offer several different types bottle labeling machine based on your requirement. Machines can be used for PVC sleeve label, self-adhesive label, OPP/BOPP label.

Sticker labeling machine:

After the bottle-separating mechanism separates the products, the sensor detects the passing of the product and sends a signal back to the labeling control system. The control system controls the motor to send out the label and attach it to the position where the product is to be labelled. The product flows through the labeling device and the labeling tape Drive the product to rotate, the label is rolled over, and the sticking action of a label is completed.

PVC labeling machine:

When a bottle on the conveyor belt passes through the bottle detection eye, the servo-controlled drive group will automatically send a label, and the brushing wheel group will brush the next label, and the label will be sleeved on the bottle.

OPP labeling machine:

Is used in continuous roll label sticking on bottles by hot glue. It uses local glue spraying method. It consumes less glue and has low running cost. The maximum speed is 600BPM, which is mainly suitable for high-level drinking water and soft drink.,etc production.OPP labeling machine working more high speed and quiet, low glue consumption, compare with shrink label, its lower cost in material.

7,Packing System

The biggest advantage of Xinmao's film packaging machine is that the cutter is of very good quality and will not break even after many years of use. Foreign famous brands also use this configuration.

The cutter of the film packaging machine with general configuration cannot cut after a few years, and the film sticks and the sealing is not good. In addition, it is very expensive to replace a cutter, which increases the cost of the enterprise. However, our cutter will never have this problem.

This packing machine combines a classic, user-friendly design with advanced features like "bottles vibration" technology to prevent squeezing. Its extended conveyor and host length improve bottle sorting and overall performance.

With over 90% high-quality imported electrical components and a history of stability, it's a top choice for automatic film packing.
